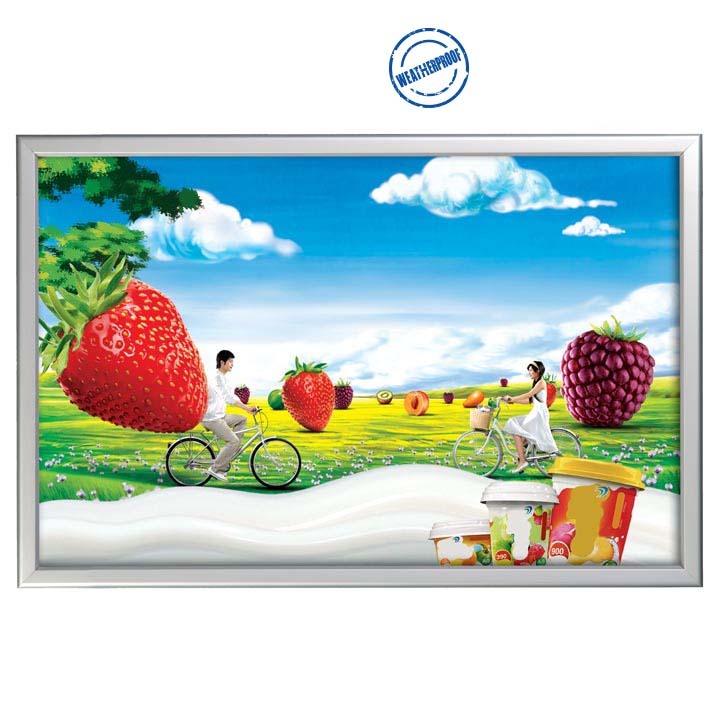

Autoboard Frame

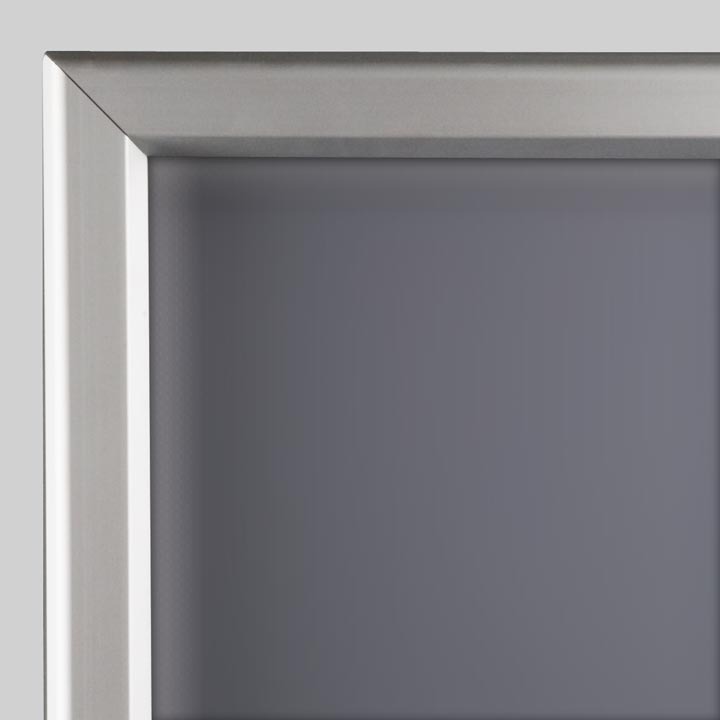

• 42 mm security profile

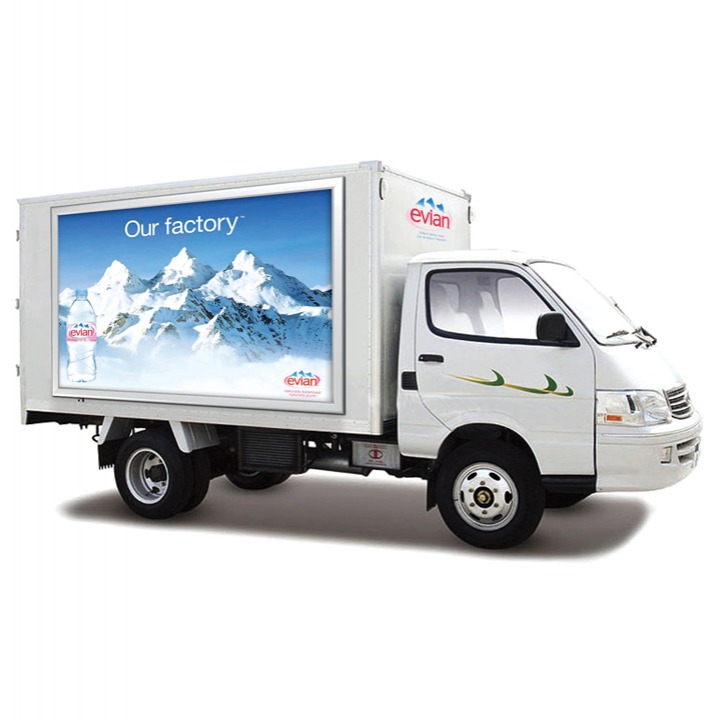

• Suitable to fit the sides of trucks, buses and ice cream vans

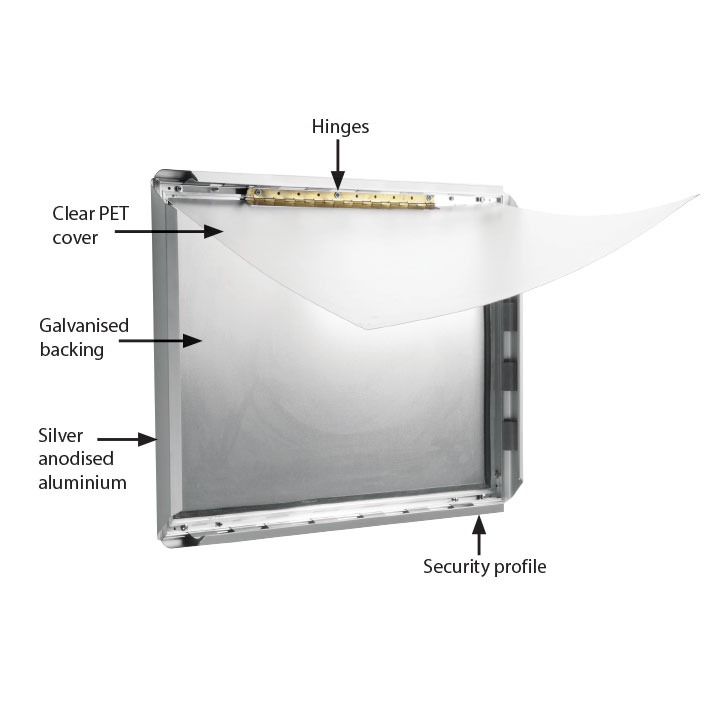

• Silver anodized Aluminium

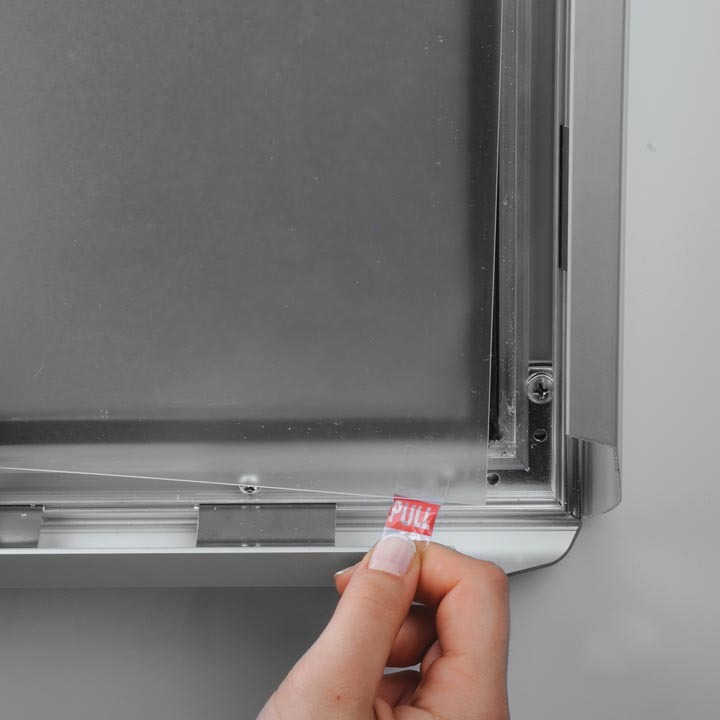

• Clear PET cover
• Water leakage holes on the frames
ACCESORIES
COLOR OPTION
SIZES
1200mm X 1600mm, 600mm X 1600mm, B0 ( 1000 X 1414 mm), B1 (700 X 1000 mm), F0 (1200 X 800 mm), F1 (800 X 600 mm)

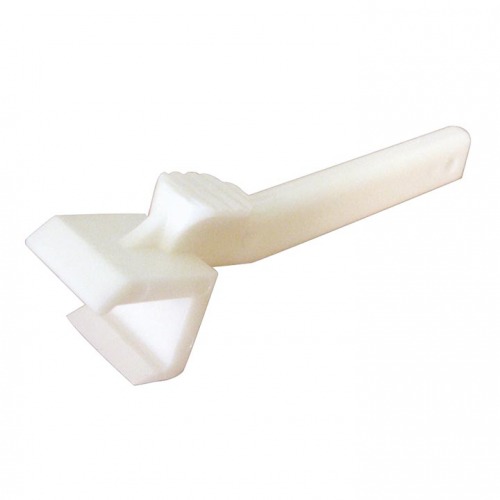

Autoboard Frame Accessories

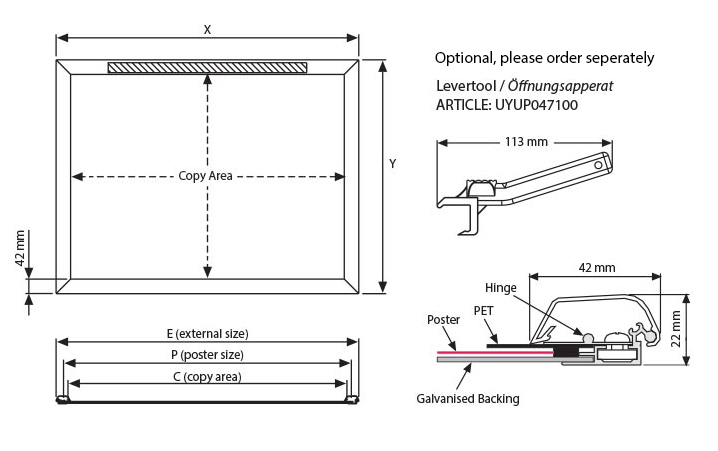

Autoboard Frame Product Specifications
| MATERIAL : Silver anodised aluminium PROFILE : 42 mm 450 | WEIGHT | PACKING SIZE | |||
| ARTICLE | EXTERNAL (x-y) | POSTER | COPY | WITH PACKING | *W X H X D |
| UCA42N00F1 | 671 X 871 mm | 600 X 800 mm | 587 X 787 mm | 3,500 kg | 690 X 920 X 31 mm |
| UCA42N00F0 | 871 X 1271 mm | 800 X 1200 mm | 787 X 1187 mm | 6,300 kg | 890 X 1310 X 31 mm |
| UCA42N00B1 | 771 X 1071 mm | 700 X 1000 mm | 687 X 987 mm | 4,595 kg | 790 X 1030 X 31 mm |
| UCA42N00B0 | 1071 X 1471 mm | 1000 X 1400 mm | 987 X 1387 mm | 8,215 kg | 1090 X 1510 X 31 mm |
| UCA42N0616 | 671 X 1671 mm | 600 X 1600 mm | 587 X 1587 mm | 3,000 kg | 690 X 1710 X 31 mm |
| UCA42N1216 | 1271 X 1671 mm | 1200 X 1600 mm | 1187 X 1587 mm | 10,750 kg | 1290 X 1710 X 31 mm |
* W:Width H: Height D: Depth
