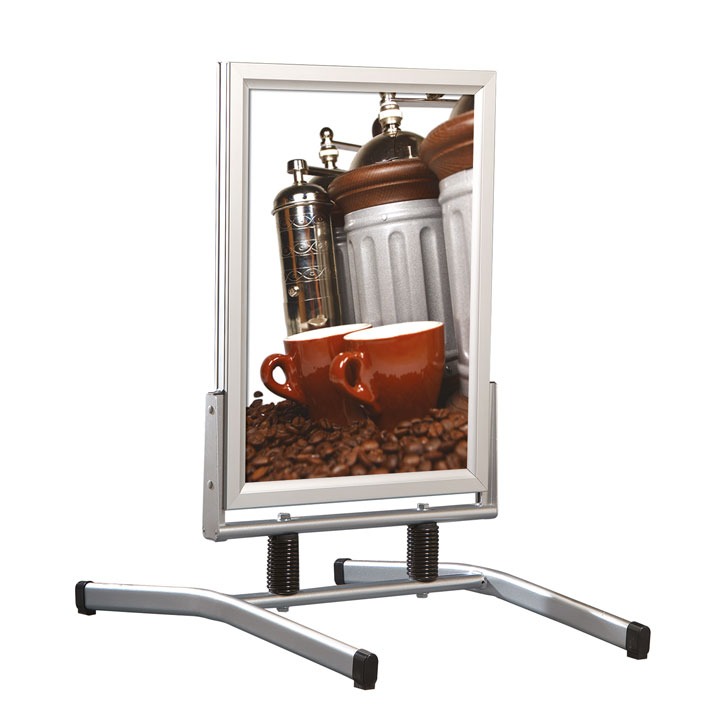

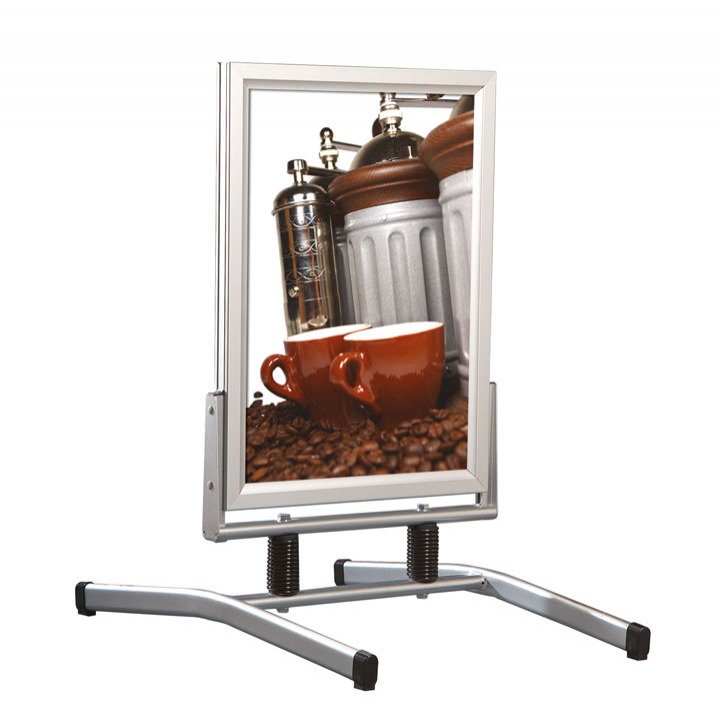

Swingmaster

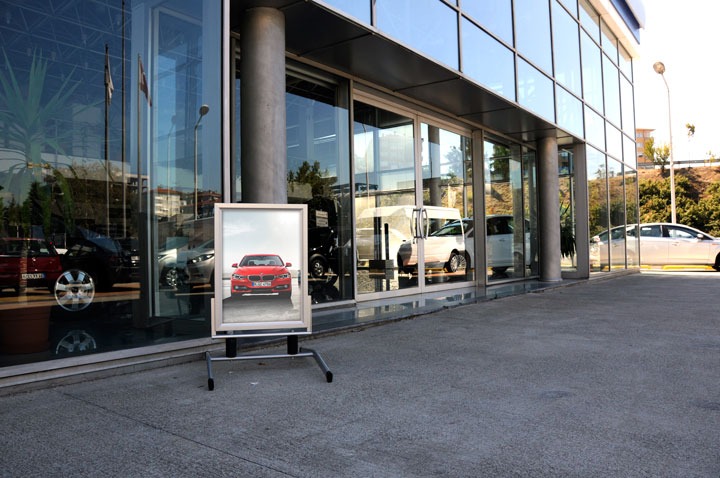

• Double sided stopper as pavement sign.
• Suitable to use in outdoor conditions.

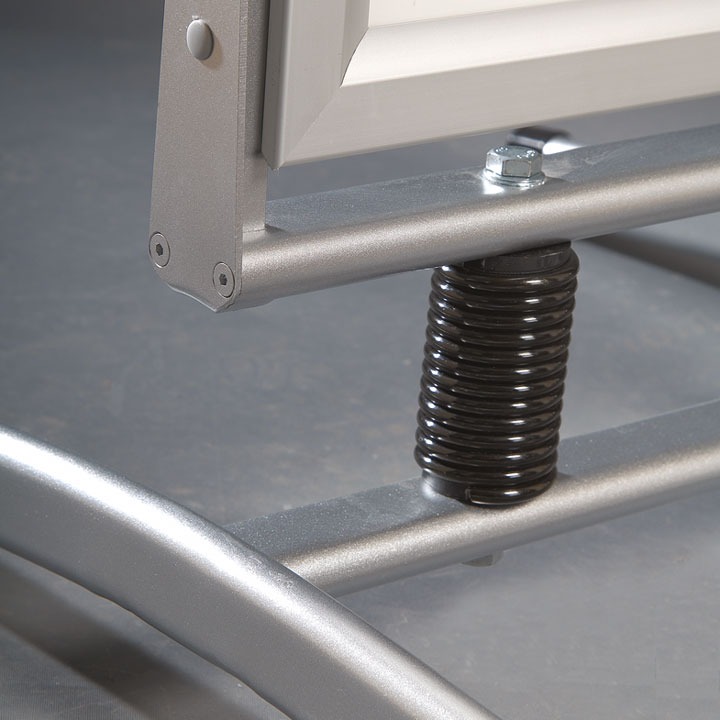

• Heavy long feet on the base provide stability.
• Optional header accessories available.
SIZES
20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), 40″ X 60″ (1016 X 1524 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), B0 ( 1000 X 1414 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)

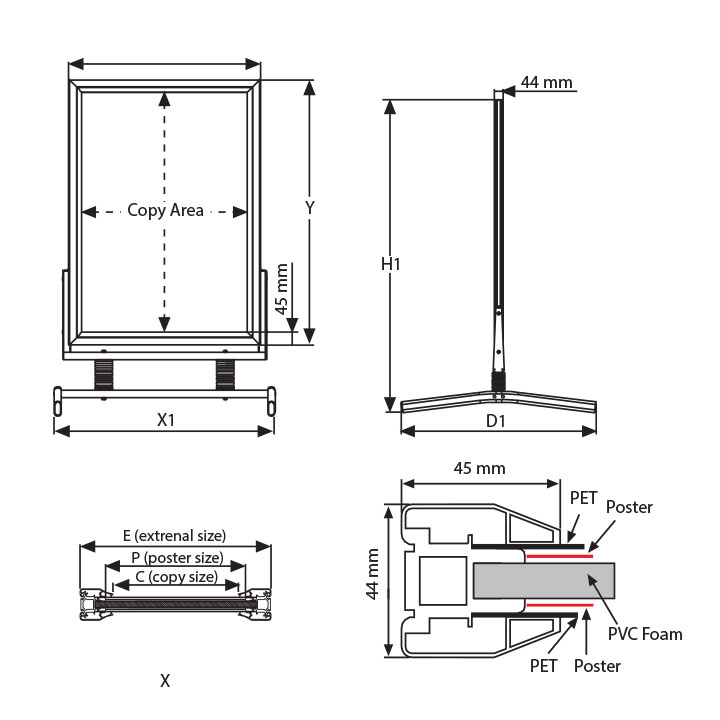

Swingmaster Product Specifications
| MATERIAL : Silver anodised aluminium | WEIGHT | PACKING SIZE | LEG | ||||||
| ARTICLE | EXTERNAL (x-y) | POSTER | COPY | H1 | WITH PACKING | *W X H X D | X1 | D1 | SPRINGS |
| UASM000NA2 | 492 X 666 mm | 420 X 594 mm | 402 X 576 mm | 1010 mm | 10,200 kg | 580 X 930 X 115 mm | 554 mm | 900 mm | 2 |
| UASM000NA1 | 666 X 913 mm | 594 X 841 mm | 576 X 823 mm | 1150 mm | 16,160 kg | 1200 X 800 X 115 mm | 728 mm | 1050 mm | 2 |
| UASM000NA0 | 913 X 1261 mm | 841 X 1189 mm | 823 X 1171 mm | 1500 mm | 25,000 kg | 1500 X 1050 X 115 mm | 975 mm | 1400 mm | 2 |
| UASM000NB2 | 572 X 772 mm | 500 X 700 mm | 482 X 682mm | 1010 mm | 13,850 kg | 1050 X 700 X 115 mm | 634 mm | 900 mm | 2 |
| UASM000NB1 | 772 X 1072 mm | 700 X 1000 mm | 682 X 982 mm | 1310 mm | 20,050 kg | 1350 X 900 X 115 mm | 834 mm | 1240 mm | 2 |
| UASM000NB0 | 1072 X 1472 mm | 1000 X 1400 mm | 982 X 1382 mm | 1710 mm | 28,000 kg | 1650 X 1270 X 115 mm | 1134 mm | 1600 mm | 2 |
| UASM000N23 | 580 X 834 mm | 508 X 762 mm | 490 X 744 mm | 1072 mm | 14,000 kg | 1050 X 730 X 115 mm | 642 mm | 900 mm | 2 |
| UASM000N34 | 834 X 1088 mm | 762 X 1016 mm | 744 X 998 mm | 1326 mm | 20,600 kg | 1350 X 970 X 115 mm | 896 mm | 1240 mm | 2 |
| UASM000N46 | 1088 X 1596 mm | 1016 X 1524 mm | 998 X 1506 mm | 1834 mm | 29,500 kg | 1800 X 1200 X 75 mm | 1150 mm | 1600 mm | 2 |
* W:Width H: Height D: Depth
