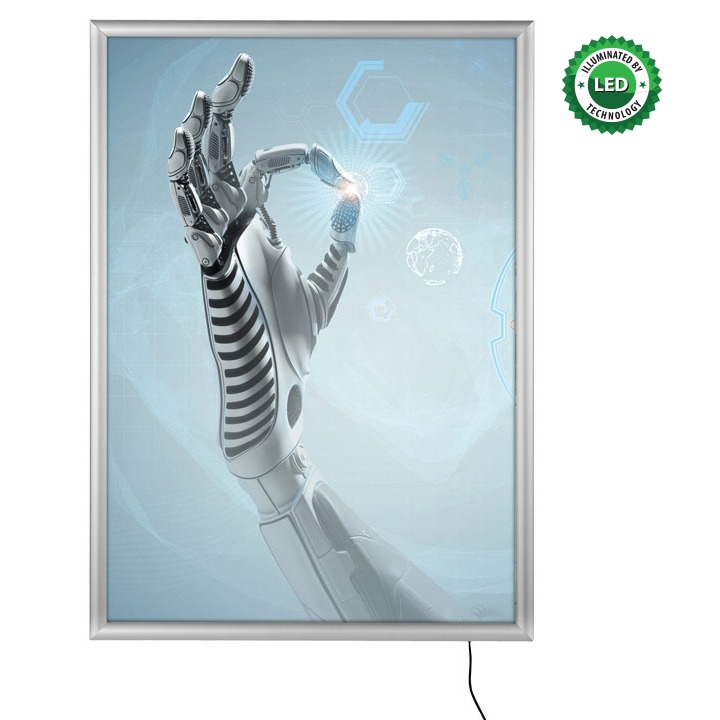

Best Buy LEDbox Single Sided

• Suitable for INDOOR applications
• Very slim: 18mm thick.
• High and even illumination level.
• Has CE/UL PAT tests.
• Complete with 3,5 meter long cable and EU plug.
• UK and US plugs are available.
• Saves up to 60% energy costs.
• Supplied with built- in powersupply,
antireflex poster cover and wall hangers.

COLOR OPTION



ACCESORIES

2 Wall hangers are standard



SIZES

11″ X 17″ (279,4 X 431,8 mm), 20″ X 30″ (508 X 762 mm), 24″ X 36″ (610 X 914 mm), 30″ X 40″ (762 X 1016 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), A3 (297 X 420 mm), A4 (210 X 297 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm),

Best Buy LEDbox Single Sided Product Description

Best Buy LEDbox Single Sided

Best Buy LEDbox is high-end and attractive custom sign solutions for a wide range of indoor applications: retail point-of-purchase, tradeshow displays, movie theatres, sports facilities, shopping malls, casinos, and more.

These light boxes are only 18 mm in depth. They are one of the thinnest lightboxes in the market. They would make great choices for high-traffic areas, especially because they do not obstruct walking paths.

Translucent poster material should be used for printing the signage of these edge lit displays. When illuminated, your advertisement will surely attract lots of attention, thanks to this LED edge lit lightbox. You do not need to worry if you want to use it for a long time, because LED bulbs last very long. You cannot see the LED bulbs from outside, since the LED bulbs of the indoor light box are embedded in the sides of the frame.

High illumination is achieved by specially treated acrylic and provides homogenous illumination. The outer power supply help long product life. They consume less energy since their LED lighting is lower voltage compared to other signage display frames in the market.

Through this LED lighting saves up to 60% energy costs. Besides they are less expensive as well. This results in cost saving both initially and after overall usage.

Light box poster frames, are easy to load and re-load thanks to their snap open framing. You simply snap up all four sides of the frame and easily insert your poster or take out.

Each frame includes an acrylic non-glare PET lens to diffuse light across your graphics. It gives an impressive effect to grab the passers-by.

They are designed for wall mounting and come with the necessary hardware for mounting. Also, each product has two wall hangers to move hangers in portrait and landscape position.

If you wish to use your LED frame 24 hours in 7 days, please ask for special 7/24 power supplies.

Best Buy LEDbox Single Sided Accessories

Best Buy LEDbox Single Sided Product Specifications

MATERIAL : Silver anodised aluminiumPROFILE: 25 MM WEIGHT PACKING SIZE
ARTICLE EXTERNAL (x-y) POSTER SIZE COPY LIGHTING WITH PACKING *W X H X D
ULB25TN0A4 240 X 327 mm 210 X 297 mm 189 X 276 mm 3000-3300 LUX 1,320 kg 255 X 435 X 35 mm
ULB25TN0A3 327 X 450 mm 297 X 420 mm 276 X 399 mm 2800-3000 LUX 1,880 kg 345 X 520 X 35 mm
ULB25TN0A2 450 X 624 mm 420 X 594 mm 399 X 573 mm 2400-2700 LUX 2,830 kg 465 X 695 X 35 mm
ULB25TN0A1 624 X 871 mm 594 X 841 mm 573 X 820 mm 1900-2100 LUX 5,000 kg 640 X 960 X 35 mm
ULB25TN0A0 871 X 1219 mm 841 X 1189 mm 820 X 1168 mm 1500-1800 LUX 8,940 kg 885 X 1290 X 35 mm
ULB25TN0B2 530 X 730 mm 500 X 700 mm 479 X 679 mm 2100-2400 LUX 3,550 kg 545 X 800 X 35 mm
ULB25TN0B1 730 X 1030 mm 700 X 1000 mm 679 X 979 mm 1700-2000 LUX 6,580 kg 745 X 1100 X 35 mm
ULB25TN017 310 X 462 mm 280 X 432 mm 259 X 411 mm 2800-3000 LUX 1,830 kg 325 X 535 X 35 mm
ULB25TN022 589 X 742 mm 559 X 712 mm 538 X 691 mm 2000-2200 LUX 3,710 kg 605 X 845 X 35 mm
ULB25TN023 538 X 792 mm 508 X 762 mm 487 X 741 mm 2200-2500 LUX 3,810 kg 555 X 860 X 35 mm
ULB25TN024 640 X 945 mm 610 X 915 mm 589 X 894 mm 1900-2100 LUX 6,520 kg 655 X 1015 X 35 mm
ULB25TN034 792 X 1046 mm 762 X 1016 mm 741 X 995 mm 1700-2000 LUX 7,170 kg 810 X 1115 X 35 mm
ULB25TB0A4 240 X 327 mm 210 X 297 mm 189 X 276 mm 3000-3300 LUX 1,320 kg 255 X 435 X 35 mm
ULB25TB0A3 327 X 450 mm 297 X 420 mm 276 X 399 mm 2800-3000 LUX 1,880 kg 345 X 520 X 35 mm
ULB25TB0A2 450 X 624 mm 420 X 594 mm 399 X 573 mm 2400-2700 LUX 2,830 kg 465 X 695 X 35 mm
ULB25TB0A1 624 X 871 mm 594 X 841 mm 573 X 820 mm 1900-2100 LUX 5,000 kg 640 X 960 X 35 mm
ULB25TB0A0 871 X 1219 mm 841 X 1189 mm 820 X 1168 mm 1500-1800 LUX 8,940 kg 885 X 1290 X 35 mm
ULB25TB0B2 530 X 730 mm 500 X 700 mm 479 X 679 mm 2100-2400 LUX 3,550 kg 545 X 800 X 35 mm
ULB25TB0B1 730 X 1030 mm 700 X 1000 mm 679 X 979 mm 1700-2000 LUX 6,580 kg 745 X 1100 X 35 mm
ULB25TB023 538 X 792 mm 508 X 762 mm 487 X 741 mm 2200-2500 LUX 3,810 kg 555 X 860 X 35 mm
ULB25TB034 792 X 1046 mm 762 X 1016 mm 741 X 995 mm 1700-2000 LUX 7,170 kg 810 X 1115 X 35 mm

* W:Width H: Height D: Depth

Best Buy LEDbox Single Sided Product Assembly Sheets

Best Buy LEDbox Single Sided Product Color Options

Product in Place

Best Buy LEDbox Single Sided Product Videos
