Snap Frames 46mm

• Suitable for INDOOR applications
• Ideal for large size posters.
• ’’Click Clack’’ snap open working principle.
• Easy to mount, simple to carry.
• Natural silver-anodized and various
• RAL colors are available.
• Anti-glare poster cover sheet.
• Mitred and Round corner alternatives.
• Max length 1350 mm and max perimeter 2500 mm.

ACCESORIES

V hanger / UYAA011010

COLOR OPTION

SIZES

20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), 40″ X 60″ (1016 X 1524 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), A3 (297 X 420 mm), B0 ( 1000 X 1414 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)

Snap Frames 46mm Product Description

A perfect combination of a basic yet elegant design, cost effective price and durability makes displaysmarket’s quick change sign frames a highly preferred option for advertising. This snap frame with sturdy aluminum frame and mitred corners is an ideal solution for heavy use, high traffic areas to stand out from the competition.

These snap frames utilize four hinged aluminum profiles that simply flip open and close in a snap. Easy poster changing once mounted on wall allowing the aluminum poster frames to stay on the wall. Just lift up sides of the snap frame and change the posters. These snap frames are ideal for businesses that need to exchange their graphics or advertisements frequently.

A poster frame, sign holder, or other sign frame offers a great way to display advertisements and graphics. This sign frame is a wall mounted poster holder that can be hung in a vertical or horizontal format. Easy to use snap open edges allow for quick and easy graphic changes.

The poster frame combines the desirable features of affordability with style and ease of use. The snap frame has secured its name and reputation owing to the clip style, hinge support structures that simply flip open and snap back into place for the easy rotation of graphics. The removal and replacement of images can be achieved in a matter of seconds with the clip metal sign frame. Best of all, the poster holder is a wall mountable display unit whereby the front loading design of the structure means you will not have to disassemble and reassemble the frame once it has been mounted. The poster frame can be positioned in either portrait or landscape presentation, with screws and anchors supplied. The clip metal sign frame has been manufactured with the highest quality materials including a plastic back panel, non-reflective transparent overlay and aluminum metal body construction for optimal durability. The frame features a silver matte finish with a slim line aesthetic. Please note, while the poster frame is petite and sleek in nature, a portion of your prints will be covered by the frame. For this reason it is recommended you print your graphics in dimensions that accommodate the frame border.

Each poster frame comes with mounting hardware and an instruction sheet. Setting up the frame on your wall will only take a couple of minutes. Then you are done and ready to display!

Snap frame, quick clip metal sign frame, sign frame, metal sign frame, poster frame, sign holder, poster frame, poster holder, click clack frame.

Snap Frames 46mm Accessories

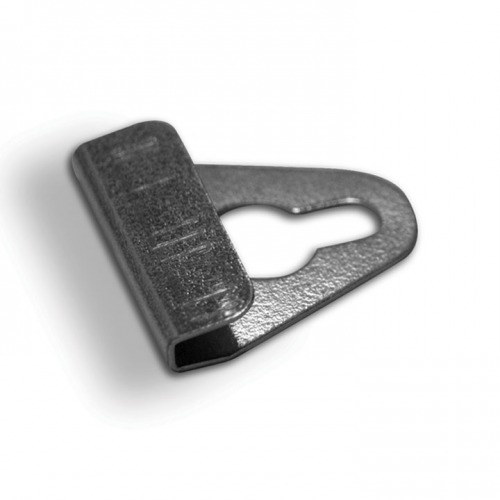

V hanger UYAA011010

Snap Frames 46mm Product Specifications

MATERIAL : Silver anodised aluminium PROFILE : 46 mm 45⁰– 46 mm Round					WEIGHT	PACKING SIZE
MITRED ARTICLE	ROUND ARTICLE	EXTERNAL (x-y)	POSTER	COPY	WITH PACKING	*W X H X D
UCN465N0A3	UCN460N0A3	340 X 463 mm	297 X 420 mm	252 X 375 mm	1,250 kg	360 X 480 X 31 mm
UCN465N0A2	UCN460N0A2	463 X 637 mm	420 X 594 mm	375 X 549 mm	1,800 kg	480 X 670 X 31 mm
UCN465N0A1	UCN460N0A1	637 X 884 mm	594 X 841 mm	549 X 796 mm	3,100 kg	660 X 910 X 31 mm
UCN465N0A0	UCN460N0A0	884 X 1232 mm	841 X 1189 mm	796 X 1144 mm	5,800 kg	910 X 1270 X 31 mm
UCN465N0B2	UCN460N0B2	543 X 743 mm	500 X 700 mm	455 X 655 mm	2,220 kg	560 X 760 X 31 mm
UCN465N0B1	UCN460N0B1	743 X 1043 mm	700 X 1000 mm	655 X 955 mm	3,960 kg	760 X 1060 X 31 mm
UCN465N0B0	UCN460N0B0	1043 X 1443 mm	1000 X 1400 mm	955 X 1355 mm	6,900 kg	1060 X 1460 X 31 mm
UCN465N023	UCN460N023	551 X 805 mm	508 X 762 mm	463 X 717 mm	3,200 kg	570 X 820 X 31 mm
UCN465N034	UCN460N034	805 X 1059 mm	762 X 1016 mm	717 X 971 mm	4,150 kg	820 X 1080 X 31 mm
UCN465N046	UCN460N046	1059 X 1567 mm	1016 X 1524 mm	971 X 1479 mm	7,200 kg	1070 X 1590 X 31 mm

* W:Width H: Height D: Depth

Snap Frames 46mm Poster Thicknesses

Articles		Poster Size	Standard Poster Thickness	Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc)	Max Poster Thickness when rear profile without channel/groove (Low density rigid posters such as PVC Foam,PP, etc)	Notes
UCN465N0A3	UCN460N0A3	A3	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N0A2	UCN460N0A2	A2	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N0A1	UCN460N0A1	A1	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N0A0	UCN460N0A0	A0	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N0B2	UCN460N0B2	B2	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N0B1	UCN460N0B1	B1	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N0B0	UCN460N0B0	B0	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N023	UCN460N023	20” X 30”	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N034	UCN460N034	30” X 40”	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
UCN465N046	UCN460N046	40” X 60”	0,1-0,2mm	4mm	7mm	Non-standard poster thickness to be informed with orders for production
