SwingPro
• WaterProof IP55
• Suitable for outdoor conditions between -15ºC/5ºF to +50ºC/122ºF.
• Double sided stopper as pavement sign
• Click clack snap open system provides easy using.
• Patented product.
• ‘Suitable for windy and rainy outdoor conditions.
• Snap open frame can be used with two different bases.
• for optional header use, header enabled frames must be ordered.
ACCESORIES
Header
COLOR OPTION
SIZES
20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)
PATENT
OHIM DM/084 128 PCT/EP2018/060515
SwingPro Product Description
In case SwingPro and WindPro is required with a “HEADER” option, then the standard frames cannot be used. Please contact our sales department for the frames suitable for use with header.
SwingPro Accessories
SwingPro Product Specifications
| FRAME : Silver anodised aluminium | WEIGHT | PACKING SIZE | ||||
| SILVER | BLACK | EXTERNAL (x-y) | POSTER | COPY | WITH PACKING | *W X H X D |
| USWP000NA1 | USWP000BA1 | 666 X 913 mm | 594 X 841 mm | 586 X 833 mm | 7,800 kg | 715 X 1180 X 47 mm |
| USWP000NA0 | USWP000BA0 | 913 X 1261 mm | 841 X 1189 mm | 833 X 1181 mm | 11,400 kg | 970 X 1600 X 47 mm |
| USWP000NB2 | USWP000BB2 | 572 X 772 mm | 500 X 700 mm | 492 X 692 mm | 7,200 kg | 820 X 1340 X 47 mm |
| USWP000NB1 | USWP000BB1 | 772 X 1072 mm | 700 X 1000 mm | 692 X 992 mm | 10,500 kg | 610 X 1040 X 47 mm |
| USWP000N23 | USWP000B23 | 580 X 834 mm | 508 X 762 mm | 500 X 754 mm | 7,500 kg | 620 X 1130 X 47 mm |
| USWP000N34 | USWP000B34 | 834 X 1088 mm | 762 X 1016 mm | 754 X 1008 mm | 11,360 kg | 880 X 1380 X 47 mm |
| STEEL BASE : Silver anodised aluminium | WEIGHT | PACKING SIZE | ||||||
| SILVER | BLACK | SIZE | FOR | H | W | D | WITH PACKING | *W X H X D |
| UTSM001000 | UTSM001010 | 920 mm | 20”X30” | 1135 mm | 690 mm | 920 mm | 3,500 kg | 220 X 970 X 47 mm |
| B2 | 1070 mm | 690 mm | 920 mm | 3,500 kg | 220 X 970 X 47 mm | |||
| UTSM002000 | UTSM002010 | 1070 mm | A1 | 1210 mm | 690 mm | 1070 mm | 4,000 kg | 220 X 1180 X 47 mm |
| UTSM003000 | UTSM003010 | 1260 mm | B1 | 1370 mm | 890 mm | 1260 mm | 4,600 kg | 220 X 1310 X 47 mm |
| 30”X40” | 1390 mm | 890 mm | 1260 mm | 4,600 kg | 220 X 1310 X 47 mm | |||
| UTSM004000 | UTSM004010 | 1420 mm | A0 | 1560 mm | 890 mm | 1420 mm | 5,600 kg | 220 X 1480 X 47 mm |
* W:Width H: Height D: Depth
SwingPro Poster Thicknesses
| Articles | Poster Size | Standard Poster Thickness | Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc) | Notes |
| USWP000NA1 | A1 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| USWP000NA0 | A0 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| USWP000NB2 | B2 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| USWP000NB1 | B1 | 0,1-0,2mm | 2mm | with gasket / waterwick |
| USWP000N23 | 20”X30” | 0,1-0,2mm | 2mm | with gasket / waterwick |
| USWP000N34 | 30″X40″ | 0,1-0,2mm | 2mm |
SwingPro Product Print Templates
SwingPro Product Assembly Sheets
SwingPro Product Certificates & Warranty
Product in Place

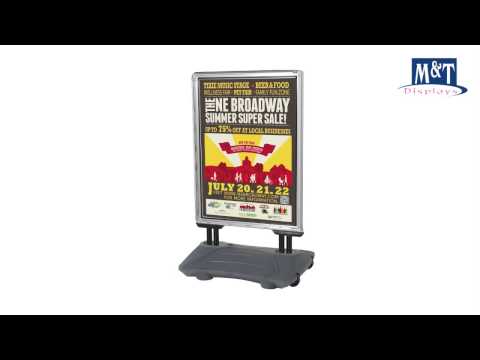

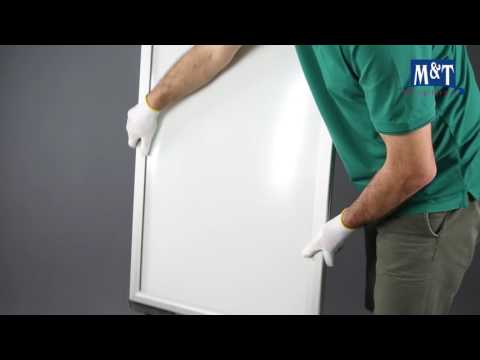

SwingPro Product Videos
