Lockable Snap Frame

• Suitable for INDOOR applications
• Secured with allen key
• One allen key supplied per frame.
• One allen key locks one side of frame
and interlocks 3 sides.
• Anti-glare poster cover sheet.

ACCESORIES

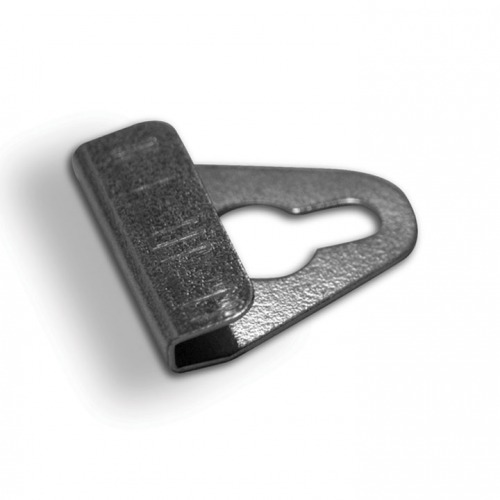

V hanger / UYAA011010











COLOR OPTION



SIZES

20″ X 30″ (508 X 762 mm), 30″ X 40″ (762 X 1016 mm), 40″ X 60″ (1016 X 1524 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), A2 (420 X 594 mm), A3 (297 X 420 mm), A4 (210 X 297 mm), B0 ( 1000 X 1414 mm), B1 (700 X 1000 mm), B2 (500 X 700 mm)

Lockable Snap Frame Product Description

This silver front loading lockable snap frame is a great way promote your products, services, announcements and notices.

The lockable poster frame is simple to use with flip open sides. All you need to do is unlock the frame with the special allen key that is included  with the product and snap open all four sides. Then you can place your printed poster and the plastic, clear non-glare cover over it and snap close. It only takes seconds to update your printed posters. Clear, plastic, non-glare cover prevents glare as well as keeps your poster away from dust and dirt.

Schools, museums, office buildings, hotel lobbies, restaurants are common places that this lockable poster frame can be used nice and safely.

Lockable Snap Frame Accessories

Lockable Snap Frame Product Specifications

MATERIAL : Silver anodised aluminium PROFILE : 32 mm 450 WEIGHT PACKING SIZE
ARTICLE EXTERNAL (x-y) POSTER COPY WITH PACKING *W X H X D
UCL325N0A4 253 X 340 mm 210 X 297 mm 190 X 277 mm 0,800 kg 260 X 360 X 31 mm
UCL325N0A3 340 X 463 mm 297 X 420 mm 277 X 400 mm 1,170 kg 360 X 480 X 31 mm
UCL325N0A2 463 X 637 mm 420 X 594 mm 400 X 574mm 1,680 kg 460 X 670 X 31 mm
UCL325N0A1 637 X 884 mm 594 X 841 mm 574 X 821 mm 3,100 kg 660 X 910 X 31 mm
UCL325N0A0 884 X 1232 mm 841 X 1189 mm 821 X 1169 mm 5,600 kg 910 X 1270 X 31 mm
UCL325N0B2 543 X 743 mm 500 X 700 mm 480 X 680 mm 2,600 kg 560 X 760 X 31 mm
UCL325N0B1 743 X 1043 mm 700 X 1000 mm 680 X 980 mm 3,800 kg 760 X 1060 X 31 mm
UCL325N0B0 1043 X 1443 mm 1000 X 1400 mm 980 X 1380 mm 6,120 kg 1060 X 1460 X 31 mm
UCL325N023 551 X 805 mm 508 X 762 mm 488 X 742 mm 3,150 kg 570 X 820 X 31 mm
UCL325N034 805 X 1059 mm 762 X 1016 mm 742 X 996 mm 4,000 kg 830 X 1080 X 31 mm
UCL325N046 1059 X 1567 mm 1016 X 1524 mm 996 X 1504 mm 7,100 kg 1070 X 1590 X 31 mm

* W:Width H: Height D: Depth

Lockable Snap Frame Poster Thicknesses

Articles Poster Size Standard Poster Thickness Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc) Max Poster Thickness when rear profile without channel/groove (Low density rigid posters such as PVC Foam,PP, etc) Notes
UCL325N0A4 A4 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N0A3 A3 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N0A2 A2 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N0A1 A1 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N0A0 A0 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N0B2 B2 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N0B1 B1 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N0B0 B0 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N023 20” X 30” 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N034 30” X 40” 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
UCL325N046 40” X 60” 0,1-0,2mm 2mm 4mm Non-standard poster thickness to be informed with orders for production
