Ocean Maxi
• Made up King Profile 50×40 mm.
• Designed for displaying fabric and textile posters
• For double-sided use
• Can be assembled with four different foot models
as baseball, hoop, circle, and fillet feet.
• Max dimensions: 2500 (H) x 4000 (W) mm, and max perimeter: 7000 mm.
• Max height: 2250 mm if used on feet.
ACCESORIES
Baseball Feet / UYUP412273
Hoop Feat / UYUP412272
Circle Feet / UYUP412271
Fillet Feet / UYUP412274
Flat Feet / UYUP412275
SIZES
1000 X 1400 mm, 1000 X 1500 mm, 1000 X 2000 mm, 1000 X 2250 mm,
Ocean Maxi Accessories
Ocean Maxi Product Specifications
| MATERIAL : Silver anodised aluminium | WEIGHT | PACKING SIZE | |||
| ARTICLE | EXTERNAL (x-y) | H (mm) | H (Pcs) | WITH PACKING | *W X H X D |
| UMFO001014 | 1000 X 1400 mm | – | – | 5,050 kg | 100 X 1450 X 140 mm |
| UMFO001015 | 1000 X 1500 mm | – | – | 5,330 kg | 100 X 1550 X 140 mm |
| UMFO001020 | 1000 X 2000 mm | – | – | 6,160 kg | 100 X 2080 X 140 mm |
| UMFO001022 | 1000 X 2250 mm | 920 mm | 1 | 7,340 kg | 100 X 2280 X 140 mm |
| UMFO002015 | 2000 X 1500 mm | – | – | 7,355 kg | 100 X 2080 X 140 mm |
| UMFO002020 | 2000 X 2000 mm | – | – | 8,100 kg | 100 X 2080 X 140 mm |
| UMFO002022 | 2000 X 2250 mm | 1920 mm | 1 | 9,550 kg | 100 X 2280 X 140 mm |
| UMFO003015 | 3000 X 1500 mm | 1420 mm | 1 | 10,220 kg | 100 X 3080 X 140 mm |
| UMFO003020 | 3000 X 2000 mm | 1920 mm | 2 | 12,470 kg | 100 X 3080 X 140 mm |
| UMFO003022 | 3000 X 2250 mm | 2170 mm | 2 | 13,040 kg | 100 X 3080 X 140 mm |
* W:Width H: Height D: Depth
Ocean Maxi Product Print Templates
Ocean Maxi Assembly Sheets
CIRCLEFEET
Click here for the assembly sheet.BASEBALL FEET
Click here for the assembly sheet.OCEAN MAXI
Click here for the assembly sheet.FILLET FEET
Click here for the assembly sheet.HOOP FEET
Click here for the assembly sheet.Ocean Maxi Product Certificates & Warranty
3 years warranty.
Terms and Conditions & Warranty Conditions

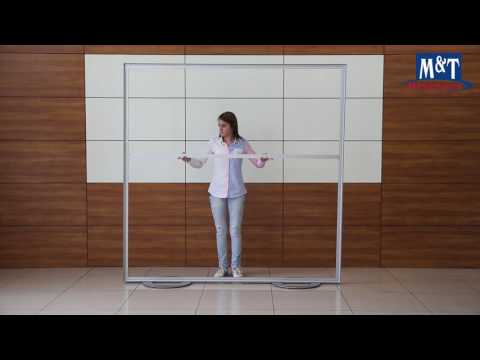

Ocean Maxi Product Videos
