SwingPro Plus

With increase performance, WindPro Plus is more durable against outdoor conditions. It consists of 2 main articles: frame and the base. The gasket in frame provides high vacuuming to UV resistant poster protection to keep the poster dry. PET is fixed on the top profile to help easy poster change. The poster stickers are also keep the poster in place avoid sliding down the frame get wet. No sharp edges and has steel springs for flexibility. Poster use is double sided.

• Waterproof IP56
• Suitable for outdoor conditions between -15ºC/5ºF to +50ºC/122ºF.
• for optional header use, header enabled frames must be ordered.

ACCESORIES

SwingPro Plus

COLOR OPTION

SIZES

20″ X 30″ (508 X 762 mm), 22″ X 28″ (559 X 711 mm), 24″ X 36″ (610 X 914 mm), 30″ X 40″ (762 X 1016 mm), A0 ( 841 X 1189 mm), A1 (594 X 841 mm), B1 (700 X 1000 mm), F0 (1200 X 800 mm)

PATENT

DM/098 297 PCT/EP2018/060515

SwingPro Plus Product Description

In case SwingPro and WindPro is required with a “HEADER” option, then the standard frames cannot be used. Please contact our sales department for the frames suitable for use with header.

SwingPro Plus Accessories

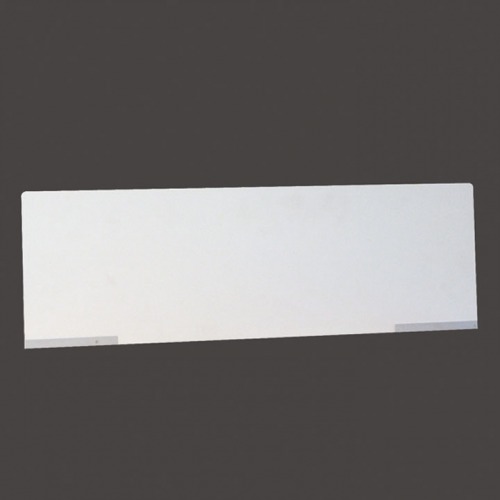

SwingPro Plus Header

SwingPro Plus Product Specifications

FRAME : Silver anodised aluminium					WEIGHT	PACKING SIZE
SILVER	BLACK	EXTERNAL (x-y)	POSTER	COPY	WITH PACKING	*W X H X D
USWPP00NA1	USWPP00BA1	671 X 918 mm	594 X 841 mm	582 X 829 mm	8,000 kg	705 X 1180 X 40 mm
USWPP00NA0	USWPP00BA0	918 X 1266 mm	841 X 1189 mm	829 X 1177 mm	12,000 kg	960 X 1545 X 40 mm
USWPP00NB1	USWPP00BB1	777 X 1077 mm	700 X 1000 mm	688 X 988 mm	10,200 kg	815 X 1320 X 40 mm
USWPP00NB2	USWPP00BB2	577 X 777 mm	500 X 700 mm	488 X 688 mm	6,800 kg	610 X 1020 X 40 mm
USWPP00N23	USWPP00B23	585 X 839 mm	508 X 762 mm	496 X 750 mm	7,960 kg	615 X 1100 X 40 mm
USWPP00N34	USWPP00B34	839 X 1093 mm	762 X 1016 mm	750 X 1004 mm	11,300 kg	875 X 1350 X 40 mm
USWPP00N22	USWPP00B22	635 X 788 mm	559 X 711 mm	547 X 699 mm	6,100 kg	665 X 1030 X 40 mm
USWPP00N24	USWPP00B24	687 X 992 mm	610 X 915 mm	598 X 903 mm	9,000 kg	710 X 1240 X 40 mm
USWPP00NF0	USWPP00BF0	877 X 1277 mm	800 X 1200 mm	788 X 1188 mm	13,000 kg	880 X 1500 X 40 mm

STEEL BASE : Powder coated iron							WEIGHT	PACKING SIZE
SILVER	BLACK	SIZE	FOR	H	W	D	WITH PACKING	*W X H X D
UTSM001000	UTSM001010	920 mm	20”X30”	1139 mm	690 mm	920 mm	3,500 kg	220 X 970 X 47 mm
			22”X28”	1088 mm	690 mm	920 mm	3,500 kg	220 X 970 X 47 mm
			B2	1077 mm	690 mm	920 mm	3,500 kg	220 X 970 X 47 mm
UTSM002000	UTSM002010	1070 mm	A1	1218 mm	690 mm	1070 mm	4,000 kg	220 X 1180 X 47 mm
			24”X36”	1292 mm	690 mm	1070 mm	4,000 kg	220 X 1180 X 47 mm
UTSM003000	UTSM003010	1260 mm	B1	1377 mm	890 mm	1260 mm	4,600 kg	220 X 1310 X 47 mm
			30”X40”	1393 mm	890 mm	1260 mm	4,600 kg	220 X 1310 X 47 mm
			F0	1577 mm	890 mm	1260 mm	4,600 kg	220 X 1310 X 47 mm
UTSM004000	UTSM004010	1420 mm	A0	1566 mm	890 mm	1420 mm	5,600 kg	220 X 1480 X 47 m

* W:Width H: Height D: Depth

SwingPro Plus Poster Thicknesses

Articles	Poster Size	Standard Poster Thickness	Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc)	Notes
USWPP00NA1	A1	0,1-0,2mm	1,5mm	with gasket / waterwick
USWPP00NA0	A0	0,1-0,2mm	1,5mm	with gasket / waterwick
USWPP00NB1	B1	0,1-0,2mm	1,5mm	with gasket / waterwick
USWPP00N23	20”X30”	0,1-0,2mm	1,5mm	with gasket / waterwick
USWPP00N34	30″X40″	0,1-0,2mm	1,5mm	with gasket / waterwick
